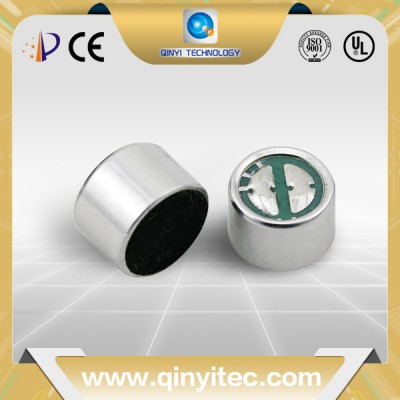

Product Description

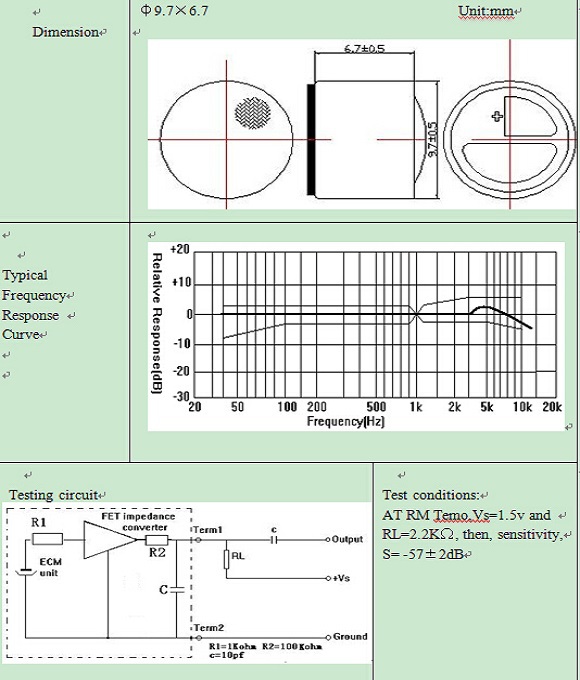

Specification of Wireless Microphone (E.C.M). | |
Model No. | FOM9767-RS |
Operation Condition | |
Temperature | -20~+55℃ |
Rel.Humidity | 35%~85%RH |
Pressure | 86~106KPa |
Environmental Noise | 36dB(Maximum) |
Operation Voltage | +1~+10VDC |
Sensitivity Reduction | Within –3dB at 3.0V→1.5V |
Electrical Characteristics | |
Standard Operation Voltage | +3.0V |
Impedance | 2.2kΩ(Maximum) |
Current Consumption | Max,0.5mA |
Sensitivity | -57±2dB(0dB=1V/Pa,1KHz) |
Directivity | Omnidirectional |
S/N Ratio | 58dB(Minimum)(A-Curve at 1KHz,Pa) |
Company Information
Weifang Qinyi Electron Science and Technology Co., Ltd is one of the world's leading manufacturers of Acoustic Components and E-cigarette Sensors in China. Our company established in the year of 2000 and the factory occupies 200 acres.
Professional R&D team which possesses strong technical strength and rich practical experiences on the research and design of electronics and we will try our best to satisfy customer’s requirements.
Fully Automatic Production Line in the industry through introducing of the new equipments such as automatic assembly machine, automatic edge banding machine, automatic testing machine, etc., Production methods are fast becoming highly mechanized.
With mature R&D team, advanced production technology, strict quality control system as well as the perfect after sale service.

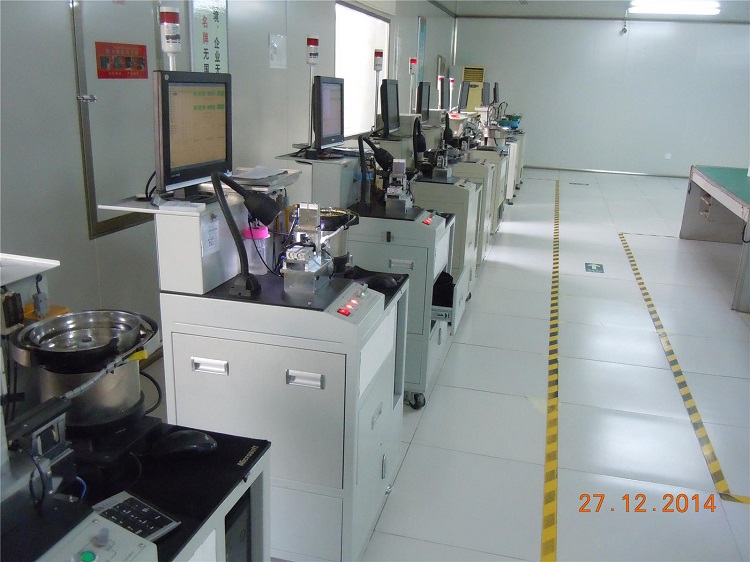

EnglishProduction line:

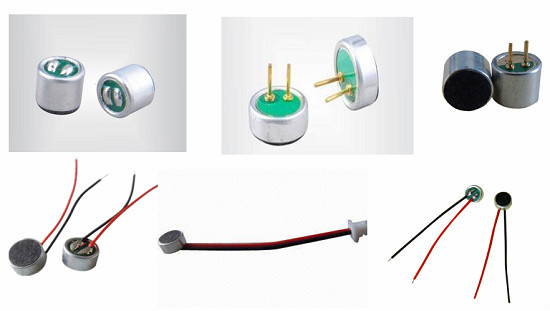

Other Products
Our Services
WHY CHOOSE US:
1. We are experienced manufacturer in OEM&ODM consumer electronics for many years.
2. The chip we used are all from qualified manufacturers and all our products are with CE/ ROHS /ISO REACH certificates.
3. Professional R&D team and salesmen, excellent service and quick response.
4. Compay certificates.
If you have any interesting in any products, pls click the yellow "send" below leave a message for me, I'll contact you at the first opportunity. looking for your inquiry ~.~
